MUFFLE FURNACES WITH FIBER-INSULATED CHAMBERS

Our high accuracy laboratory electric furnaces with fiber insulated chambers, are designed by a group of professional engineers and made from high quality materials, which are manufactured in our factory, such as heavy-duty metal parts and thermal insulation materials. Fit with a selection of precise digital controllers and certified heating elements to ensure excellent temperature stability.

The furnaces include ceramic hearth plates. To eliminate gasses or smake that are released during thermal processing, a ventilation hole

and an exhaust system may be additionally installed in the products. The furnaces are excellent for scientific laboratories,

educational institutions, medicine and for industrial use, to be used for hardening, loosening, normalising, and other thermal processing up to temperatures of 1100 °C or 1300 °C.

Basic model

Ceramic bottom plate

Control panel is placed in the underpart of the furnace

Door opens upwards

Door safety interlock switch

Equipped with non-programmable controller Omron E5CC

Fast heating time due to low thermal mass construction

Good stability and uniformity

Heating elements, embedded in a vacuum-formed fiber,

are inside four walls of the chamber on models up to 1100 °C

Heating elements are exposed on ceramic tu bes on

two sides of the chamber on models up to 1300 °C

Low power consumption

One-piece, high thermal efficiency, vacuum-formed

ceramic fiber chamber

Outside casing metai sheet, powder painted grey

1 year warranty

Options

Additional ceramic bottom plates

Buzzer

Calibration of temperature measurement system

Data communication/USS

Data recorder

Digital timer

Fan-assisted chimney for air extraction Gas box up to 1100 °C

Metal tray

OTP (over temperature protection)

Outside casing made from stainless steel

Process observation window (ø 35 mm) up to 1100 °C

Protective gas injection system (nitrogen or argon)

Table for supporting the furnace

Additional 1 year warranty

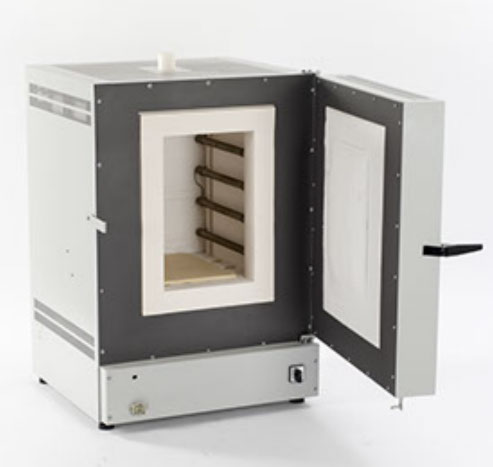

CHAMBER FURNACES WITH FIBER-INSULATED CHAMBERS

Highly accurate laboratory electric furnaces with chambers made of thermal insulation fiber, designed by a group of professional engineers and made from high quality  materials. To eliminate gasses or smoke that are released during thermal processing, a ventilation hole and an exhaust system may be additionally installed in the products. The furnaces are excellent for scientific laboratories, educational institutions, medicine and for industrial use, to be used for hardening, loosening, normalising, and other thermal processing up to temperatures of 1600 °C.



Basic model

Ceramic bottom plate

Chamber made of fiber thermal insulation plates

Control panel is placed in the underpart of the furnace

Door opens to the right side

Door safety interlock switch

Equipped with non-programmable controller Omron E5CC

Fast heating time due to low thermal mass construction

Good stability and uniformity

Heating elements in the grooves in three sides of the chamber

Low power consumption

Outside casing metal sheet, powder painted grey

1 year warranty



Options

Additional ceramic bottom plates

Buzzer

Calibration of temperature measurement system

Data communication/USB

Data recorder

Digital timer

Fan-assisted chimney for air extraction

Gas box up to 1100 °C

Metal tray

OTP (over temperature protection)

Process observation window (ø 35 mm) up to 1100 °C

Protective gas injection system (nitrogen or argon)

Table for supporting the furnace

Additional 1 year warranty

FURNACES WITH CERAMIC CHAMBER

Highly accurate laboratory electric furnaces with solid ceramic chambers, designed by a group of professional engineers and made from

high quality materials, which are manufactured in our factory, such as heavy-duty metal parts and thermal insulation materials. The furnaces include ceramic bottom plates. To eliminate gasses or smoke that are released during thermal processing, a ventilation hole and an exhaust system may be additionally installed in the products. The furnaces are excellent for scientific laboratories, educational institutions, medicine and for industrial use, to be used for hardening, loosening, normalising, and other thermal processing up to temperatures of 1300 °C.



Basic model

Ceramic bottom plate

Control panel is placed in the underpart of the furnace

Door opens to the right side

Door safety interlock switch

Equipped with non-programmable controller Omron E5CC

Fast heating time due to low thermal mass construction

Good stability and uniformity

Low power consumption

Outside casing metal sheet, powder painted grey

Partially exposed or enclosed heating elements in four

sides around a chamber

Solid ceramic chamber

1 year warranty

Options

Additional ceramic bottom plates

Buzzer

Calibration of temperature measurement system

Data communication/USB

Data recorder

Digital timer

Fan-assisted chimney for air extraction

Gas box up to 1100 °C

Metal tray

OTP (over temperature protection)

Process observation window (0 35 mm) up to 1100 °C

Protective gas injection system (nitrogen or argon)

Table for supporting the furnace

Additional 1 year warranty

ASHING FURNACES

Our ashing furnaces are designed by a group of professional engineers and made from high quality materials, which are manufactured in our factory, such as heavy-duty metal parts and thermal insulation materials.

Fan-assisted chimney permits to eliminate smokes from the chamber during the process. Ashing process is possible with several types of

furnaces: muffle furnaces, fiber-insulated chamber furnaces and ceramic chamber furnaces. This range of furnaces is suitable for ashing and burn off processes in temperatures of 900-1300 °C.



Basic model

Chamber made of vacuum formed ceramic fiber/ fiber thermal

insulation plates / solid ceramic

Continuous air change in the chamber

Control panel is placed in the underpart of the furnace

Door safety interlock switch

Equipped with non-programmable controller Omron E5CC

Fan-assisted chimney for air extraction

Fast heating time due to low thermal mass construction

Good stability and uniformity

Low power consumption

Outside casing metal sheet, powder painted grey

1 year warranty

Options

Additional ceramic bottom plates

Buzzer

Calibration of temperature measurement system

Data communication/USB

Data recorder

Digital timer

Gas box up to 1100 °C

Metal tray

OTP (over temperature protection)

Process observation window (ø 35 mm) up to 1100 °C

Protective gas injection system (nitrogen or argon)

Table for supporting the furnace

Additional 1 year warranty
